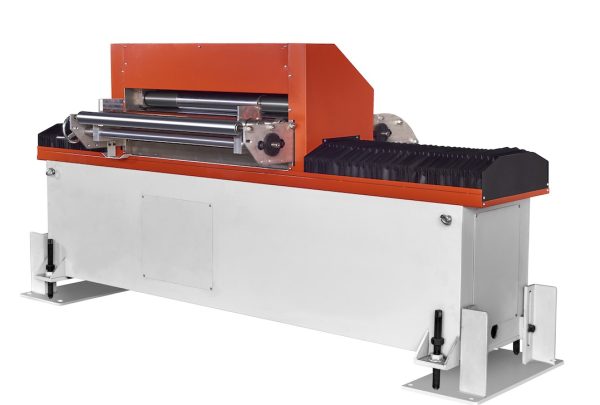

Zigzag moving NC feeder

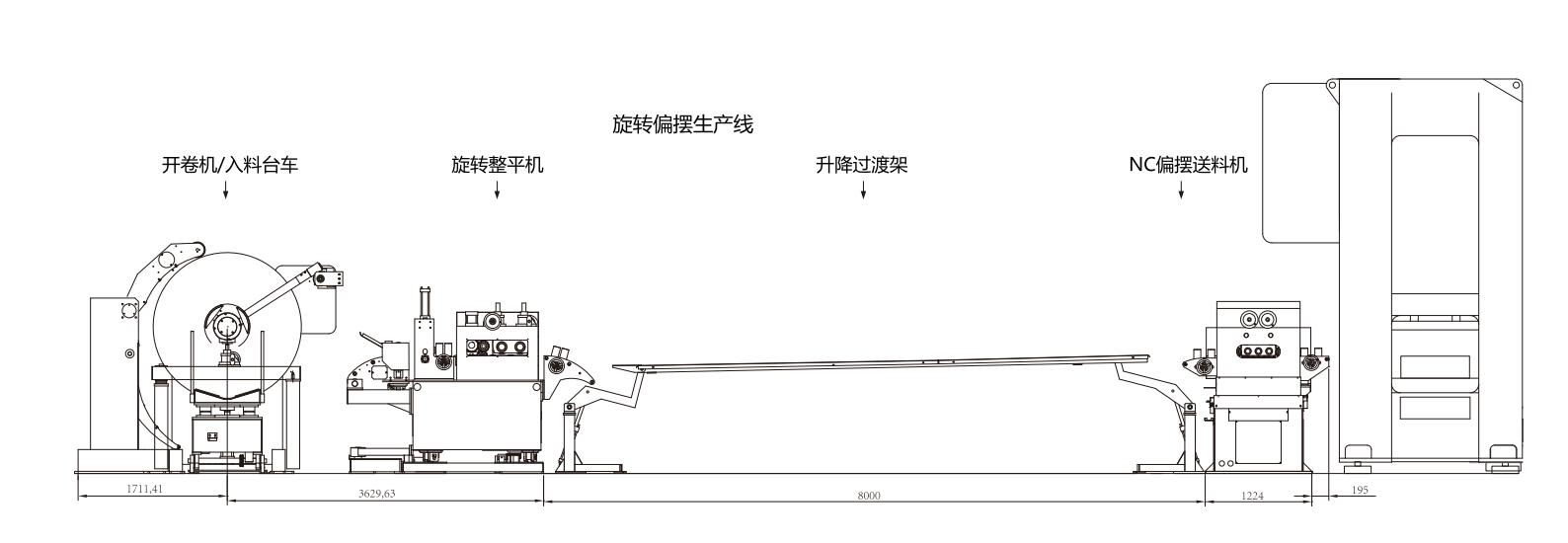

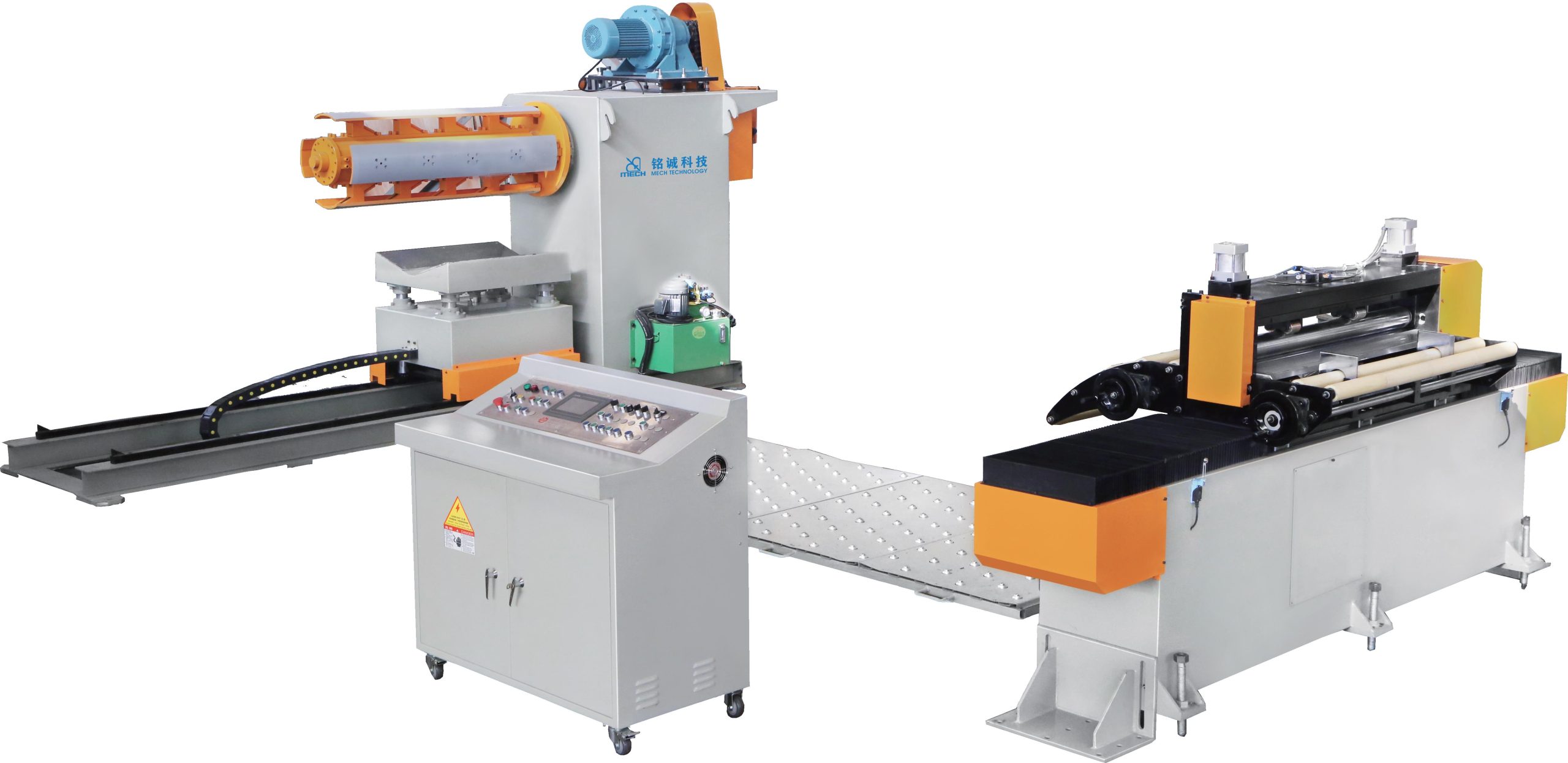

Zigzag feeder, also called left and right swing feeder, it is designed to maximize material utilization. Usually, some deep drawing parts, such as steel pots, bowls, motor or filter housing, battery housing etc. request metal sheet in circle or irregular shape before putting to mould, zigzag feeder can make it from coil to circle sheet with lower cost than laser cutting line, so it’s widely used in household appliance, kitchenware industry.

Feasures:

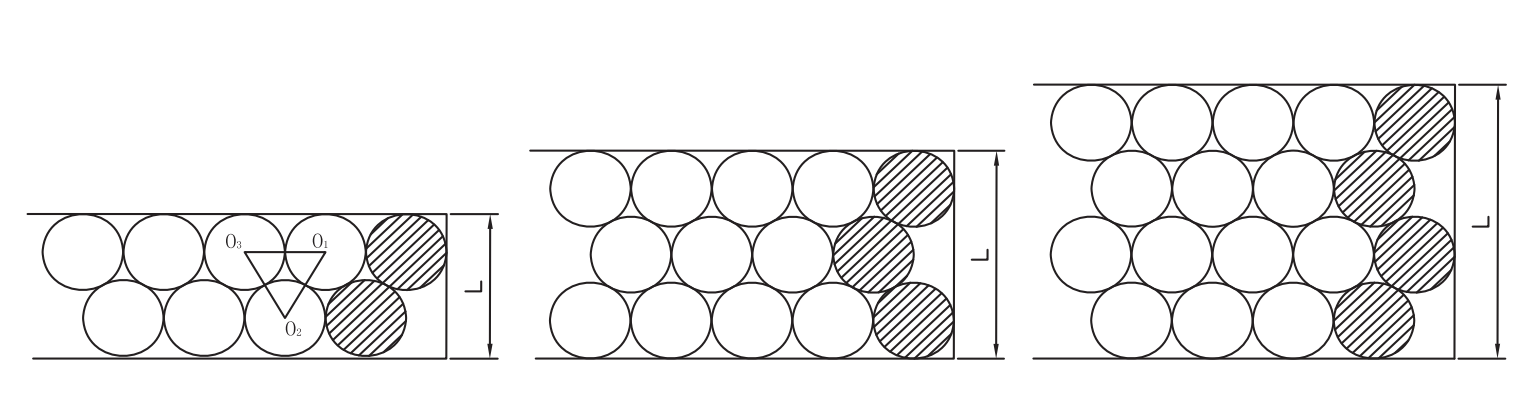

1,Reducing the minimum distance between disk to disk and disk to strip edge, so as to reduce meterial cost
2,Small occupied area and lower cost input than later cutting line
3,Flexible shift settings is suitable for a variety of arrangement,10 different groups of feeding data can be saved, by input material width and circle diameter, PLC will automatically calculate the moving and feeding distance
4,No limit for the strip layout, no need to adjust any mechanical mechanism, just enter the length size on the touch display control screen.
5,High-precision feeding size: with extremely high accuracy, the feeding error can be controlled within 0.1MM
