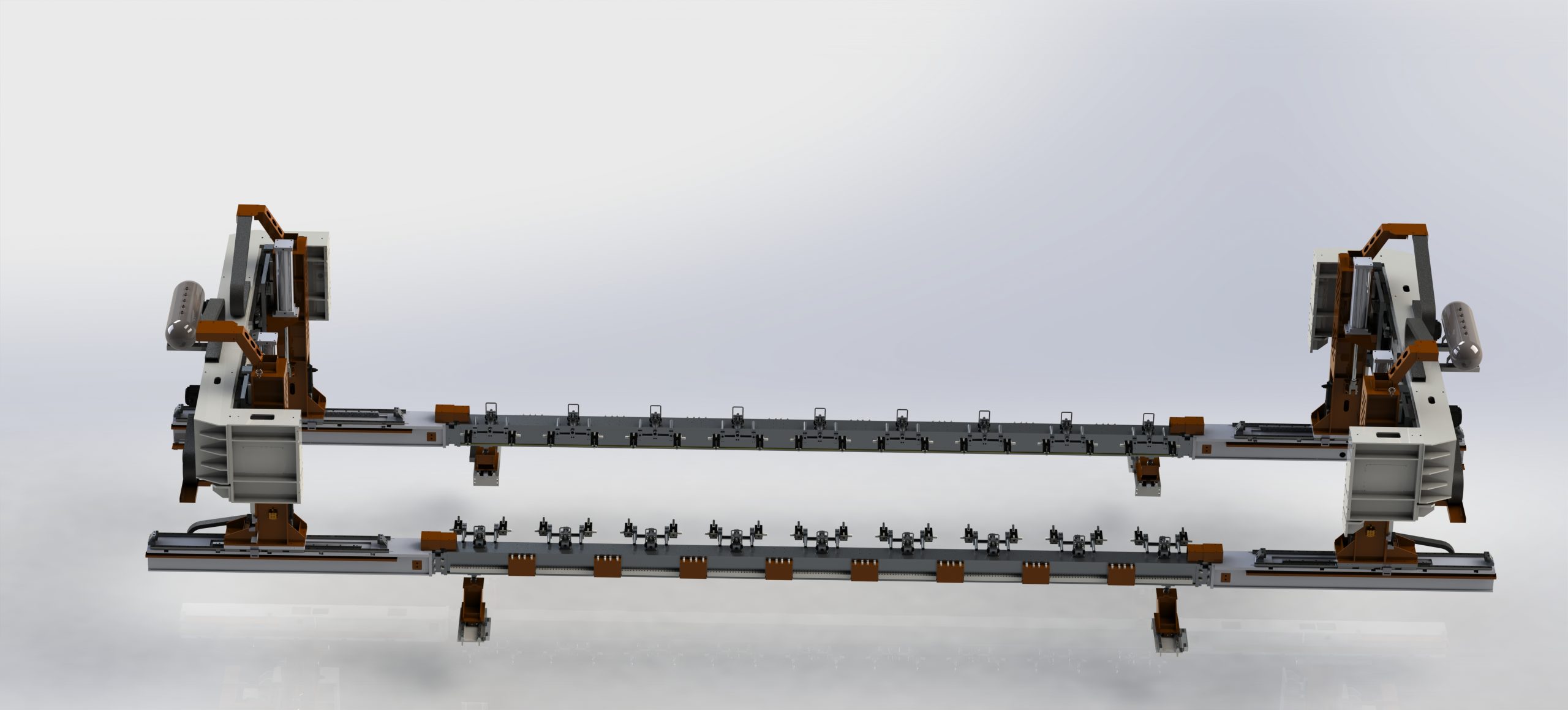

3D transfer manipulator

The 3D transfer system is mainly composed of main body, auxiliary part, main rod fixture and electrical control part. It adopts high-precision AC servo and control system, so it can precisely follow the crankshaft angle of the punch and move the product precisely between stations. It’s widely used in sheet metal stamping processing in electronics, home appliances, automobiles and other industries.
By clamping->lifting–> feeding–>droping–>releasing clip–>return, the product is moved to the next station through such an action cycle, each action closely following the step of the punch.
